Description

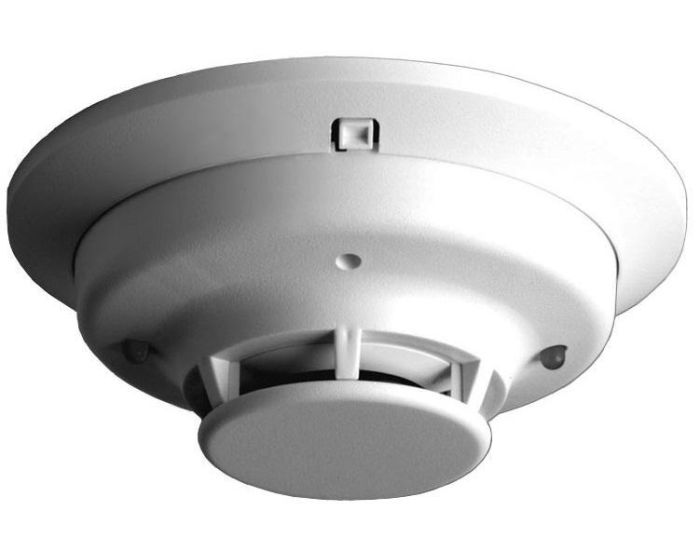

The System Sensor C2W-BA is a 2-wire photoelectric smoke detector from the i3 Series, ULC listed for use in conventional fire alarm systems. It's designed for installation by licensed fire alarm technicians and must be used with a compatible UL/ULC-listed control panel.
Key features:
- Plug-in detector design with mounting base included, for fast pre-wiring
- Large wire-entry port with in-line terminals (SEMS screws) for neat wiring
- Mounts to octagonal or single-gang backboxes, 4" square backboxes, or directly to the ceiling
- Stop-Drop 'N Lock attachment connects the head to the base
- Removable cover and chamber for easy cleaning
- Drift compensation and smoothing algorithms help minimize nuisance alarms
- Wide-angle, dual-color LED indication for instant visual inspection
- Built-in remote maintenance signaling and "EZ Walk" loop test feature (with compatible i3 panels or 2W-MOD module)
Specifications:
Sensor type: Photoelectric
Wiring: 2-wire, 12/24V
Sensitivity: 2.5%/ft nominal
Operating humidity: 0–95% RH, non-condensing
Input terminals: 14–22 AWG wire
Listing: ULC Listed
This is a commercial fire alarm component intended for installation by a licensed fire alarm technician, in compliance with NFPA 72 and local code requirements.
