Description

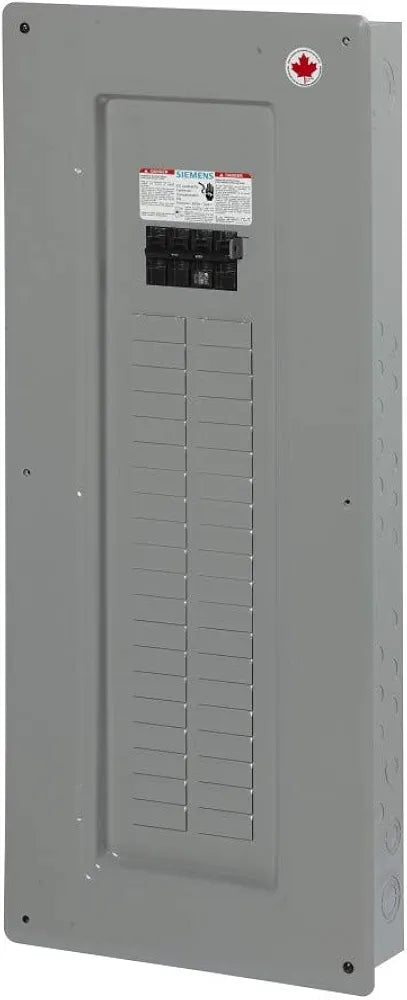

The Siemens SEQ40200 200A Service Entrance Load Center (240V, 1-Phase, 40 Circuits/80 Spaces) is Siemens' Instawire single-phase panel for larger residential and light commercial service upgrades, built for surface mounting with a gasketed, weatherproof door.
Key features:
- 200A factory-installed main breaker for full residential or light commercial service capacity
- 40 circuits, expandable to 80 with tandem breakers
- Insta-Wire neutral and ground bars speed up installation — screws back out ready for wire insertion
- Gasketed hinge door provides weatherproof protection for outdoor/surface-mount installs
- Cold-rolled, code-gauge steel enclosure and trim for long-term durability
- 3-wire configuration, accepts 6 AWG to 250 kcmil wire
Specifications:
Model: SEQ40200
Amperage: 200A
Voltage: 240V
Phase: 1-Phase, 3-Wire
Circuits: 40 (80 spaces with tandems)
Mounting: Surface
Dimensions: 36" H x 14-1/4" W x 4" D
Housing: Steel
Must be installed by a licensed electrician in compliance with applicable electrical codes.
