Description

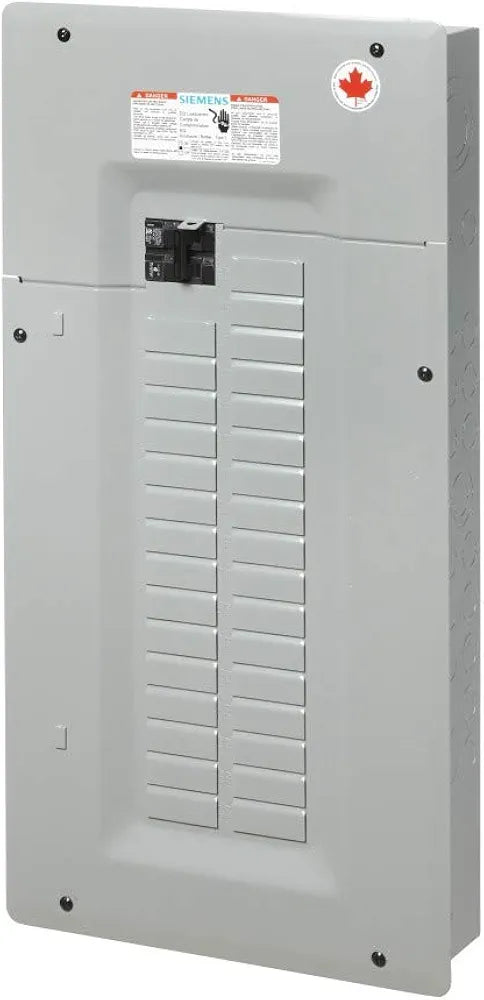

The Siemens SEQ32100SM 100A Service Entrance Load Center (240V, 1-Phase, 32 Circuits/64 Spaces) is Siemens' Instawire panel for standard residential service, with a side-mount main breaker and combination flush-or-surface mounting for flexible installation.
Key features:
- 100A factory-installed main breaker (65 kA interrupt rating)
- 32 circuits, expandable to 64 with tandem breakers
- Combination flush or surface mount for flexible installation in new or retrofit panels
- Insta-Wire neutral and ground bars speed up installation
- Certified for vertical, horizontal, or inverted mounting
- 3-wire configuration, accepts 4 AWG to 2/0 AWG wire
Specifications:
Model: SEQ32100SM
Amperage: 100A
Voltage: 240V
Phase: 1-Phase, 3-Wire
Circuits: 32 (64 spaces with tandems)
Mounting: Combination flush/surface, side-mount breaker
Dimensions: 27-1/8" H x 13-1/8" W x 3-3/4" D
Weight: 22.6 lb
Enclosure: NEMA Type 1, steel
Must be installed by a licensed electrician in compliance with applicable electrical codes.
