Description
The Schluter-KERDI-DRAIN (KD2/PVC/E) is a complete shower drain kit with an integrated bonding flange, designed for new shower construction and renovations. The wide flange provides a secure, watertight bond to Schluter-KERDI waterproofing membrane at the top of the assembly, making it suitable for both a standard mortar bed or a Schluter-KERDI-SHOWER-T/-TS/-TT shower tray.
Key features:
- Integrated bonding flange creates a large contact area for a secure, watertight connection to KERDI waterproofing membrane
- 4" square stainless steel grate, laterally adjustable to fit your tile layout and leveled flush with the tiled surface
- Accommodates a wide range of tile thicknesses, from 1/4" (6mm) to 1-1/4" (32mm)
- Grate is removable for easy access and cleaning of the drain housing and pipes
- Rigid PVC flange construction allows tile to be installed flush over the drain's borders

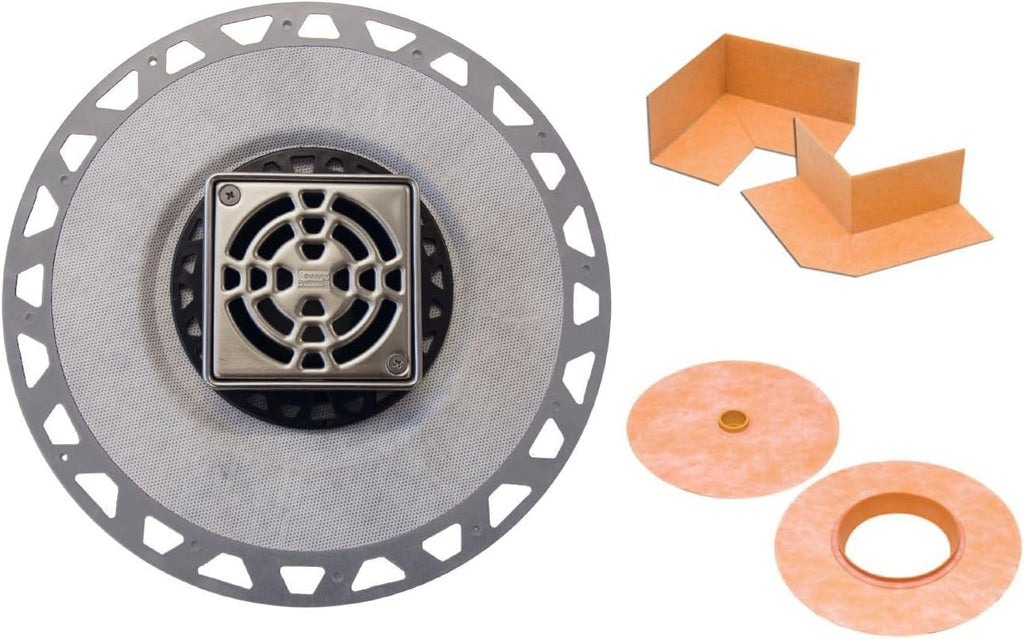

What's included: 1 drain body with integrated PVC bonding flange (2" outlet), 1 grate assembly (4" square stainless steel grate with ABS adjustment rings), 4 inside and 2 outside KERDI-KERECK preformed waterproofing corners, 1 KERDI-SEAL-PS pipe seal (3/4"), and 1 KERDI-SEAL-MV mixing valve seal (4-1/2").
Specifications:
Model: KD2/PVC/E
Drain outlet: 2" (50mm)
Grate size: 4" square
Grate finish: Stainless steel
Flange material: PVC
Tile thickness range: 1/4" to 1-1/4" (6–32mm)
Warranty: 10-year limited (floor drains)
