Description

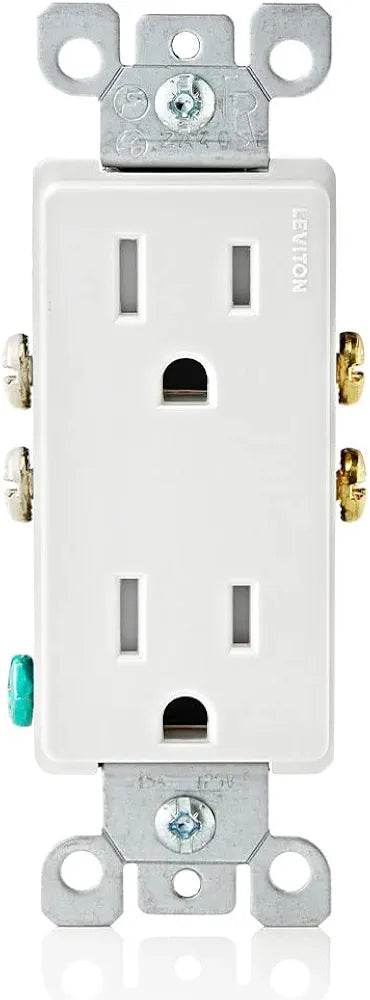

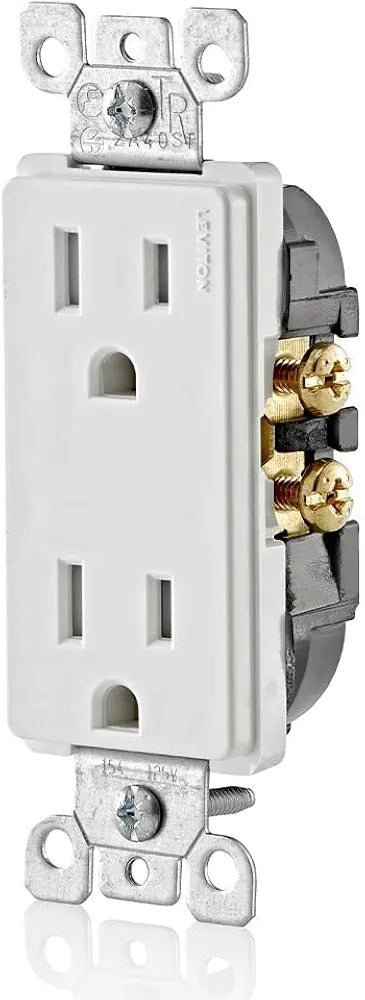

The Leviton T5325-WMP is a 15 Amp, 125 Volt Decora tamper-resistant duplex receptacle, sold in a 10-pack. It meets the 2008 NEC mandate requiring tamper-resistant receptacles in residential housing, making it a common choice for new construction, renovations, and code-compliant replacements.
Key features:
- Internal shutter mechanism blocks access to the contacts unless a two-prong plug is inserted with equal pressure on both sides, helping keep hairpins, keys, and other objects out
- TR symbol on the strap confirms it meets the latest NEC tamper-resistant requirements
- Ultrasonically welded, impact-resistant thermoplastic nylon construction for long, trouble-free service life
- Quickwire push-in and side wiring terminals for fast, flexible installation
- Double-wipe power contacts for reliable conductivity and secure plug retention
- Self-grounding strap with reinforced break-off tabs
Specifications:
Model: T5325-WMP
Amperage: 15A
Voltage: 125V
NEMA configuration: 5-15R
Poles: 2, 3-wire grounding
Color: White
Terminal type: Quickwire push-in and side wiring (accepts #10, #12, #14 AWG copper, or #10, #12 copper-clad wire; push-in accepts #14 AWG solid copper only)
Certifications: UL/CSA listed, NEC compliant
Warranty: 2-year limited
Pack quantity: 10
