Description

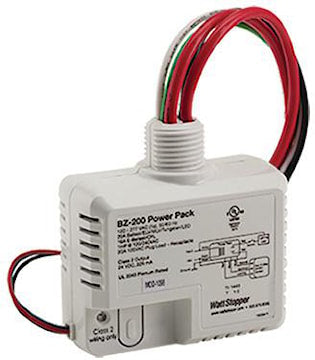

The BZ-200 power pack switches connected loads On and Off in response to Wattstopper low voltage occupancy sensors. It also provides up to 225mA at 24VDC to power the sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant.
| Brand Name | WattStopper | Sub Brand | Pass & Seymour |
| Item Name | Plug Load Power Pack | Type | Power Pack |
| Voltage Rating | 120/240/277 VAC | Amperage Rating | 20 A |
| Frequency Rating | 50/60 Hz | Output Rating | 24 VDC, 225 mA |
| Indicator Type | LED | Material | ABS |
| Dimensions | 3.06 in L x 1.44 in W x 3.07 in H | Mounting | 1/2 in Knockout |
| Humidity | 5 - 95% Non-Condensing | Temperature Rating | -4 to 131 °F |
| Warranty | 5 yr | Includes | Short Circuit and Thermal Protection |
| Standards | UL and cUL Listed: UL244A, UL508 and C22.2 No. 14-10, RoHS Compliant | Application | Lighting and HVAC Loads |
| UPC | 754182938032 |
