Description

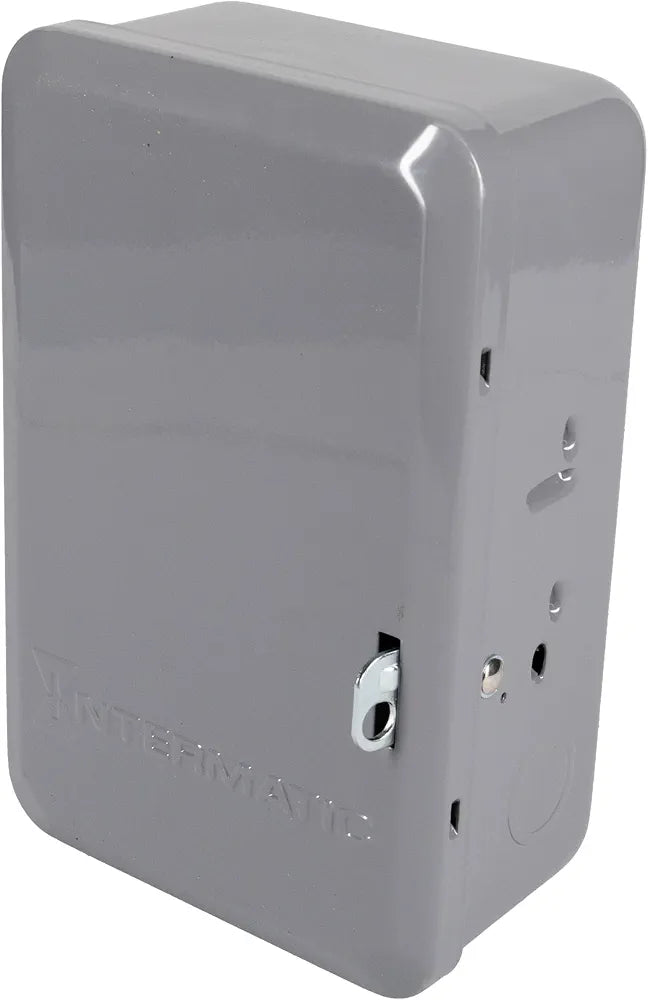

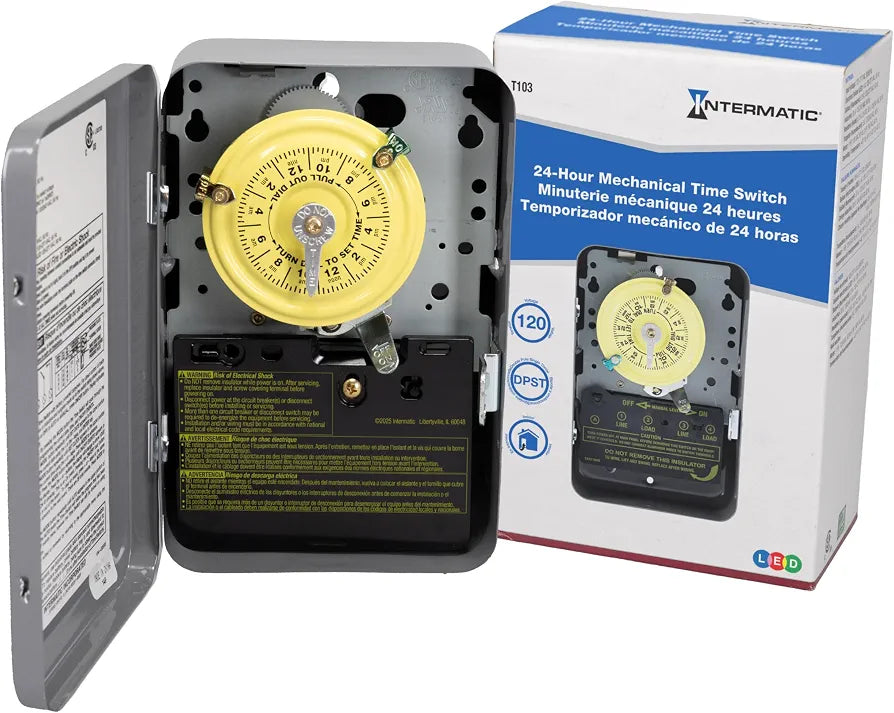

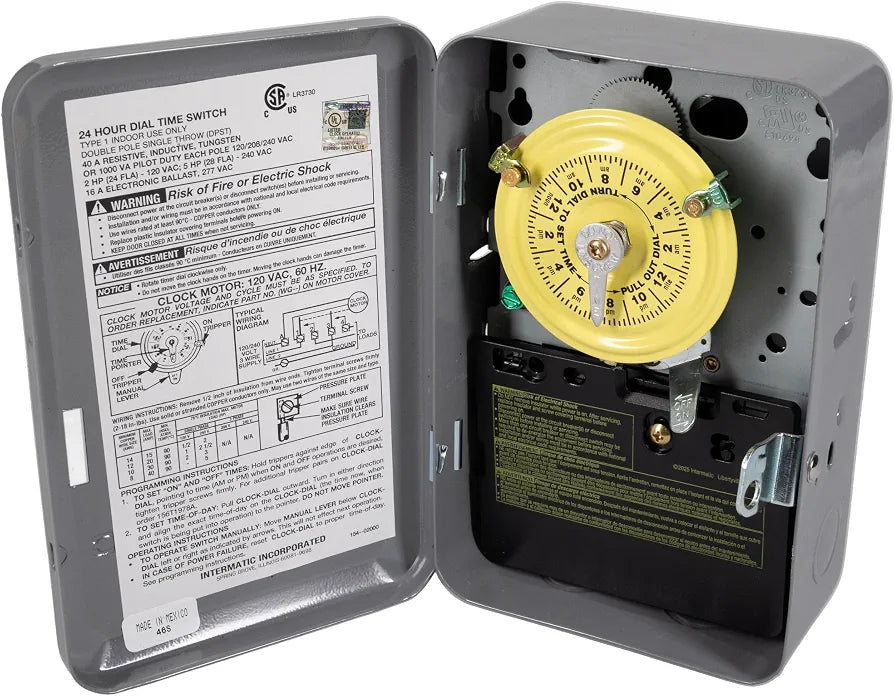

The Intermatic T103 is a 24-hour electromechanical time switch in a NEMA 1 indoor metal enclosure. It's a heavy-duty, reliable choice for scheduling lighting, HVAC, pumps, fans, and other electrical loads in industrial, commercial, and residential applications. The T100 Series has a proven track record for long-lasting performance.
- DPST (Double Pole Single Throw) — controls both lines of a 120V circuit simultaneously
- 40A capacity per pole, 5 HP motor load rating — suitable for heavy-duty applications including pool pumps, HVAC equipment, and lighting
- Up to 12 ON/OFF operations per day with a minimum ON/OFF time of 1 hour

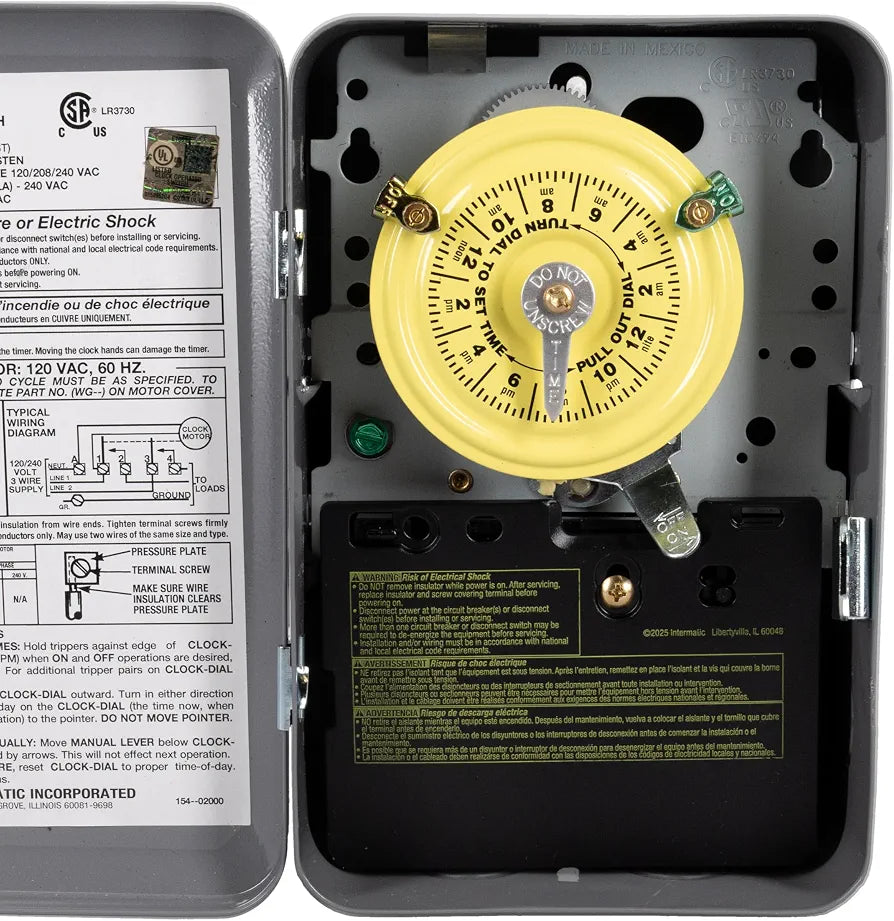

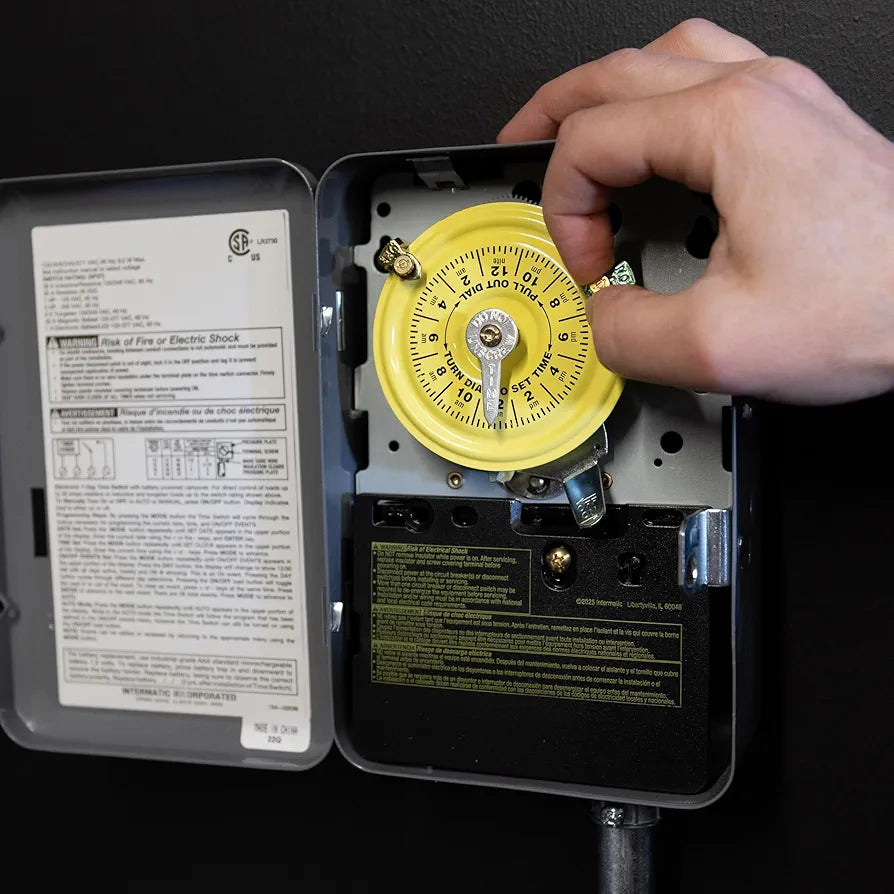

- Manual override switch for convenient manual control
- One ON and one OFF tripper included
- Teeter-type terminals accept #14 to #8 AWG wire
- NEMA 1 indoor metal enclosure with three combination knockouts (1/2" to 3/4")
- cULus and cCSAus certified; HVACR rated
Specifications:
Model: T103
Series: T100
Voltage: 120 VAC, 60Hz
Amperage: 40A
Poles: 2 (DPST)
HP rating: 5 HP
Time setting: 24 hours
Interval: 1 hour minimum

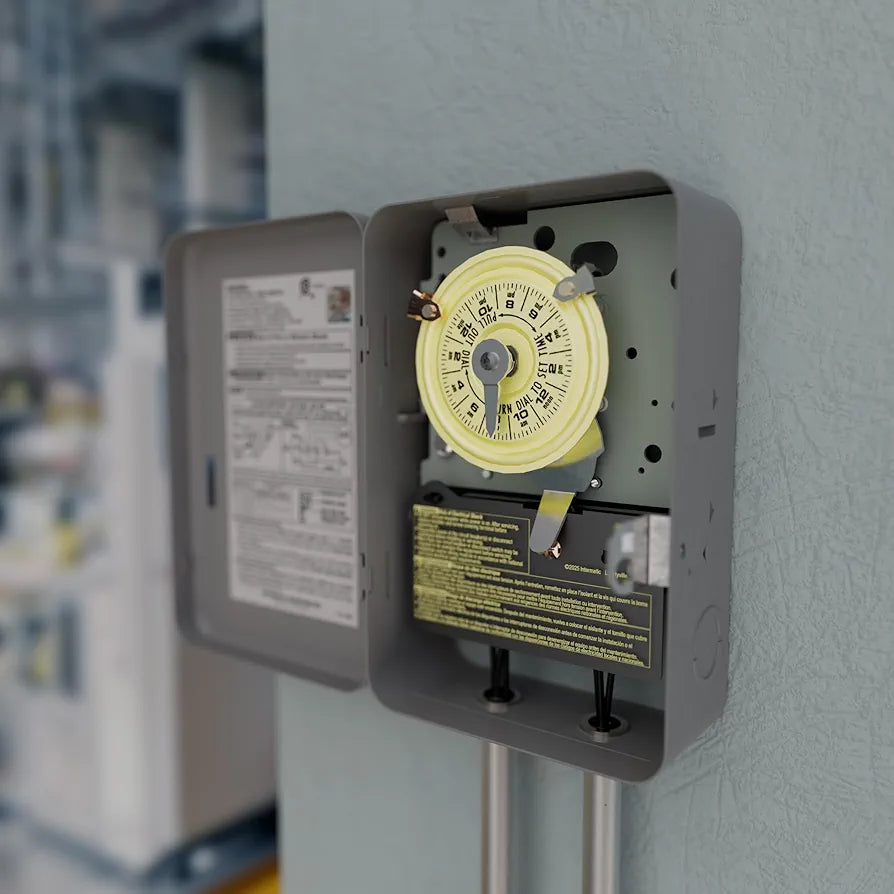

Enclosure: NEMA 1 indoor metal
Dimensions: 5" L x 3" W x 7-3/4" H
Operating temperature: -40°F to 130°F
Certifications: cULus, cCSAus
Warranty: 1-year limited
